首 页 > 电源线磁珠 > > FBHA(车用)

电源线磁珠

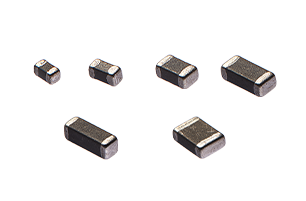

FBHA(车用)

FEATURES

?Noise reduction solution for general signal line

?Compared to the FBA series, has low direct current resistance for compatibility with large currents, optimal for lowpower consumption. Various frequency characteristicswith 2 materials of different features for counter measuresagainst everything from general signals to high-speed signals

?Performs well even in signal lines where low direct currentresistance is required

?AEC-Q200 qualified

?Operating temperature:-55°C to +150°C


APPLICATION

?Power line filter for body controls, and car multimedia etc

FBHA
产品清单
产品图系列号尺寸(mm)阻抗(Ω)温升电流(mA)直流电阻(Ω)文件下载
FB0402.pngFBHA04021.0*0.5*0.510~2201500~30000.022~0.15下载
1121.pngFBHA0402S1.0*0.5*0.510~600
1000~4000
0.018~0.2下载
FB0603.pngFBHA06031.6*0.8*0.826~10001000~60000.01~0.20下载
FB0603.pngFBHA0603S1.6*0.8*0.830~10001500~50000.01~0.15下载
FB0805.pngFBHA08052.0*1.25*0.8522~10001500~60000.01~0.15下载
FB0805.pngFBHA0805S2.0*1.25*0.8530~10001600~8500
0.004~0.12下载
1121.pngFBHA12063.2*1.6*1.126~6001000~60000.01~0.20下载
1121.pngFBHA1206S3.2*1.6*1.130~10002000~110000.0025~0.075下载
FB1806.pngFBHA18064.5*1.6*1.660~803000~60000.01~0.04下载
FB1812.pngFBHA18124.5*3.2*1.580~1505000~60000.01~0.02下载
