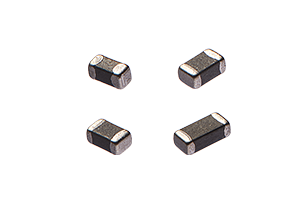

Multilayer Chip Inductor
MI(Commercial Grade)
FEATURES
?Monolithic structure with multilayer
?Wide inductance range
?Small size and low profile available
APPLICATION
?Noise suppression
?Filters
FEATURES
?Monolithic structure with multilayer
?Wide inductance range
?Small size and low profile available
APPLICATION
?Noise suppression
?Filters
| Picture | Serial No. | Dimension(mm) | Inductance(μH) | Temperature Rise Current(mA) | DC Resistance(Ω) | Self Resonant Frequency(MHz) | Download |
 | MI0603 | 1.6*0.8*0.8 | 0.047~22.0 | 1.0~50.0 | 0.3~2.1 | 11~260 |  |
 | MI0805 | 2.0*1.25*（0.85~1.25） | 0.047~33.0 | 5.0~300 | 0.2~1.25 | 13~320 | |
 | MI1206 | 3.2*1.6*1.1 | 0.047~47.0 | 10~300 | 0.15~3.4 | 10~320 | |
